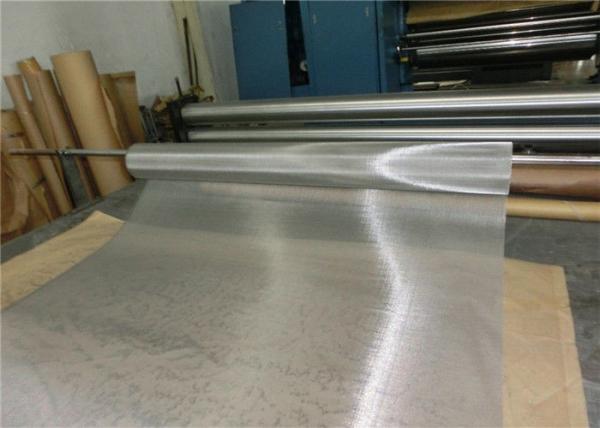

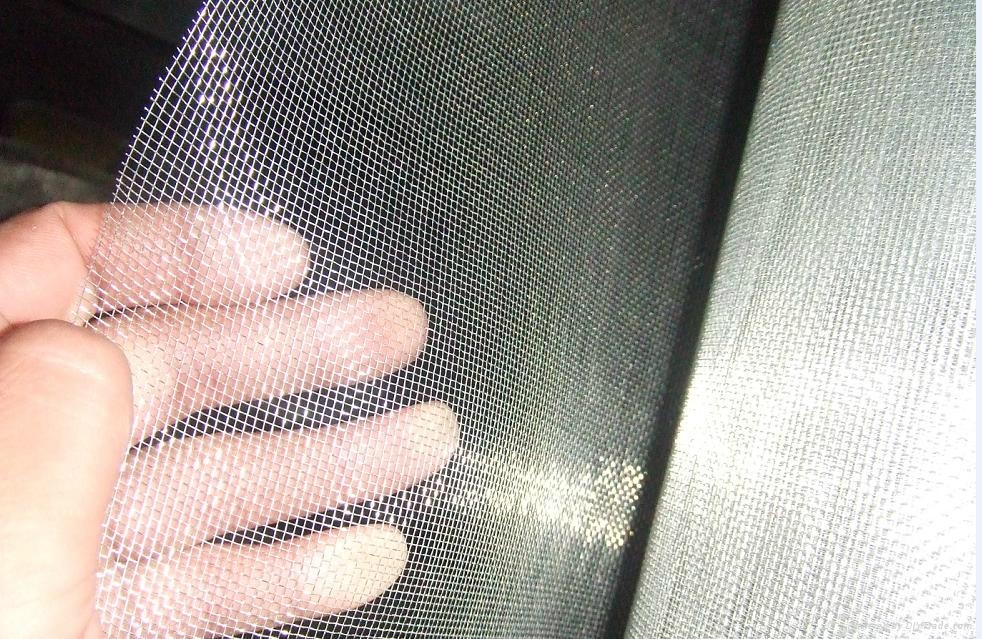

304L 1250 635 mesh stainless steel plain twill weave wire mesh,stainless steel screen printing wire mesh
Material: SS304,SS316 Stainless Steel Wire
Weave Type: Plain weave, Twilled weave, Dutch weave
Wire Diameter: 0.025-1.8mm
Performance : Corrosion-resisting, Wear-resisting, Tear-resisting
Uses: Mainly used for Filter, protect, Food industry, Chemical industry and so on.
Special size and specification are available according to customers requirment.
Feature:
1. Acid and alkali resistance
2. Corrosion and rust resistance
3. High resistance due to tight wire position
4. Extreme low absolute grade of fineness (down to 5 - 6 μm)
5. Heat resistance
Uses: Stainless steel wire mesh is used for mining, petroleum, chemical industry, food, medicine, machinery manufacturing and other industries.
We can produce all kinds of stainless steel wire mesh, including stainless steel square wire mesh and stainless steel twilled woven mesh. Stainless steel wire mesh with its anti-wearing, heat resistance, acid resistance and anti-corrosion properties, is used popularly for mining, chemical industry, food industry, the pharmaceutical industry and many other fields.
Features:
- Corrosion resistance.
- Anti-acid and alkali
- Anti-high temperture.
- Good filter performance.
- Long using life
Detail specification
Specification:
Size
| Meshes per linear inch | Wire diameter | Width of opening | Open area percent | Weight-Pounds per 100 Sq.ft. |
| lnches | mm | lnches | mm |
| 1χ1 | 0.157 | 4 | 0.84 | 21.4 | 71 | 110.97 |
| 3χ3 | 0.079 | 2 | 0.25 | 6.4 | 58 | 82.45 |
| 4χ4 | 0.063 | 1.6 | 0.187 | 4.75 | 56 | 104.8 |
| 5χ5 | 0.055 | 4.1 | 0.14 | 3.68 | 52 | 68.25 |
| 8χ8 | 0.043 | 1.1 | 0.08 | 2.08 | 42 | 66.83 |
| 10χ10 | 0.02 | 0.51 | 0.08 | 2.03 | 64 | 26.1 |
| 12χ12 | 0.023 | 0.584 | 0.06 | 1.52 | 51.8 | 42.2 |
| 14χ14 | 0.023 | 0.584 | 0.048 | 1.22 | 45.2 | 49.8 |
| 16χ16 | 0.018 | 0.457 | 0.0455 | 1.13 | 50.7 | 34.5 |
| 20χ20 | 0.016 | 0.406 | 0.034 | 0.86 | 46.2 | 34.4 |
| 30χ30 | 0.012 | 0.305 | 0.0213 | 0.54 | 40.8 | 29.4 |
| 40χ40 | 0.01 | 0.254 | 0.015 | 0.38 | 36 | 27.6 |
| 50χ50 | 0.08 | 0.203 | 0.012 | 0.31 | 36 | 22.1 |
| 60χ60 | 0.0075 | 0.191 | 0.0092 | 0.23 | 30.5 | 23.7 |
| 80χ80 | 0.0055 | 0.14 | 0.007 | 0.18 | 31.4 | 16.9 |
| 100χ100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 30.3 | 14.2 |
| 100χ100 | 0.004 | 0.102 | 0.006 | 0.15 | 36 | 11 |
| 100χ100 | 0.0035 | 0.089 | 0.0065 | 0.17 | 42.3 | 8.3 |
| 110χ110 | 0.004 | 0.1016 | 0.0051 | 0.1295 | 30.7 | 12.4 |
| 120χ120 | 0.0037 | 0.094 | 0.0046 | 0.1168 | 30.7 | 11.6 |
| 150χ150 | 0.0026 | 0.066 | 0.0041 | 0.1041 | 37.4 | 7.1
|
Our stainless steel wire mesh product range
About us
Anping tenglu metal wire mesh co.,ltd,is a manufacture and exporter of stainless steel wire mesh product.
We are located in wire mesh industrial base Anping city,Hebei province in China.
Our product range is as below,
Stainless steel woven wire mesh
Welded wire mesh
Crimped wire mesh
Hexagonal wire mesh
Knitted wire mesh
Wire mesh filter
Window screen
