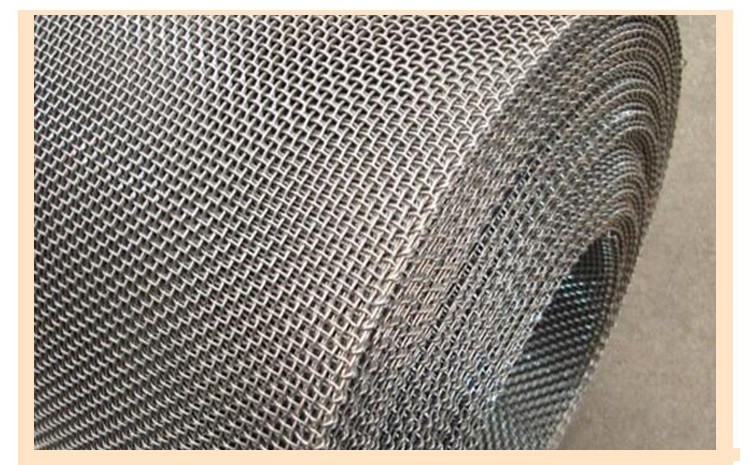

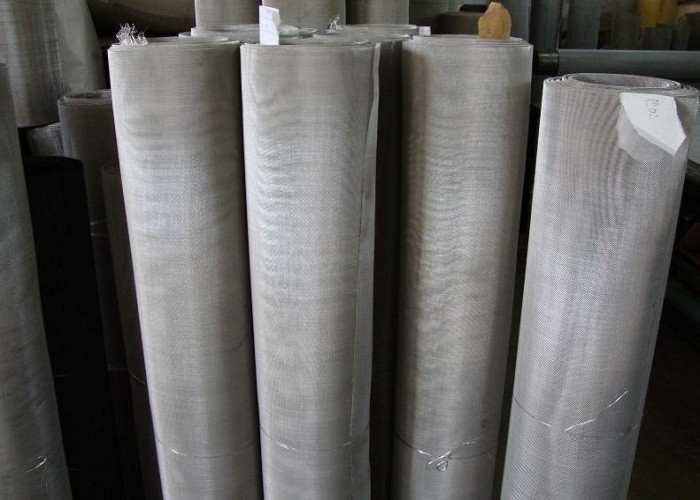

Stainless Steel filtration Wire Mesh,plain weave 100 micronstainlesss steel 304 wire mesh
With different properties,stainless steel mesh fabric is the most common materials for woven wire mesh products. Some applications for stainless steel mesh fabric includes test sieve,industrial filtration,architectural decoration,paper making machine cloth,dryer belts,plastic extruder screen belt etc.
- Material: Stainless Steel 201,202,301,302,304,304L,316,316L,321. (SS 304 is general material)
- Wire Diameter: 0.015-1mm (we have our own wire drawing workshop for serve mesh production)
- Mesh No.:3-635 Mesh (' Mesh' means the numbers of hole in one inch line)
- Weave type: Plain Weave,Twilled weave,dutch weave.
- Roll Width: 1.0m,1.2m,1.3m,1.5m,1.6m,2.0m up to 6m (or cut as your request)
- Roll Length: 15m,30m,60m,100m,200m
- Material: Stainless Steel 201,202,301,302,304,304L,316,316L,321. (SS 304 is general material)
- Wire Diameter: 0.015-1mm (we have our own wire drawing workshop for serve mesh production)
- Mesh No.:3-635 Mesh (' Mesh' means the numbers of hole in one inch line)
- Weave type: Plain Weave,Twilled weave,dutch weave.
- Roll Width: 1.0m,1.2m,1.3m,1.5m,1.6m,2.0m up to 6m (or cut as your request)
- Roll Length: 15m,30m,60m,100m,200m
Data sheet of stainless steel wire mesh
| Mesh/Inch | Wire Diameter | Aperture | Open Area | Weight(LB)/100 Square Foot |
| Inch | MM | Inch | MM |
| 1x1 | .080 | 2.03 | .920 | 23.37 | 84.6 | 41.1 |
| 2X2 | .063 | 1.60 | .437 | 11.10 | 76.4 | 51.2 |
| 3X3 | .054 | 1.37 | .279 | 7.09 | 70.1 | 56.7 |
| 4X4 | .063 | 1.60 | .187 | 4.75 | 56.0 | 104.8 |
| 4X4 | .047 | 1.19 | .203 | 5.16 | 65.9 | 57.6 |
| 5X5 | .041 | 1.04 | .159 | 4.04 | 63.2 | 54.9 |
| 6X6 | .035 | .89 | .132 | 3.35 | 62.7 | 48.1 |
| 8X8 | .028 | .71 | .097 | 2.46 | 60.2 | 41.1 |
| 10X10 | .025 | .64 | .075 | 1.91 | 56.3 | 41.2 |
| 10X10 | .020 | .51 | .080 | 2.03 | 64.0 | 26.1 |
| 12X12 | .023 | .584 | .060 | 1.52 | 51.8 | 42.2 |
| 12X12 | .020 | .508 | .063 | 1.60 | 57.2 | 31.6 |
| 14X14 | .023 | .584 | .048 | 1.22 | 45.2 | 49.8 |
| 14X14 | .020 | .508 | .051 | 1.30 | 51.0 | 37.2 |
| 16X16 | .018 | .457 | .0445 | 1.13 | 50.7 | 34.5 |
| 18X18 | .017 | .432 | .0386 | .98 | 48.3 | 34.8 |
| 20X20 | .020 | .508 | .0300 | .76 | 36.0 | 55.2 |
| 20X20 | .016 | .406 | .0340 | .86 | 46.2 | 34.4 |
| 24X24 | .014 | .356 | .0277 | .70 | 44.2 | 31.8 |
| 30X30 | .013 | .330 | .0203 | .52 | 37.1 | 34.8 |
| 30X30 | .012 | .305 | .0213 | .54 | 40.8 | 29.4 |
| 30X30 | .009 | .229 | .0243 | .62 | 53.1 | 16.1 |
| 35X35 | .011 | .279 | .0176 | .45 | 37.9 | 29.0 |
| 40X40 | .010 | .254 | .0150 | .38 | 36.0 | 27.6 |
| 50X50 | .009 | .229 | .0110 | .28 | 30.3 | 28.4 |
| 50X50 | .008 | .203 | .0120 | .31 | 36.0 | 22.1 |
| 60X60 | .0075 | .191 | .0092 | .23 | 30.5 | 23.7 |
| 60X60 | .007 | .178 | .0097 | .25 | 33.9 | 20.4 |
| 70X70 | .0065 | .165 | .0078 | .20 | 29.8 | 20.8 |
| 80X80 | .0065 | .165 | .0060 | .15 | 23.0 | 23.2 |
| 80X80 | .0055 | .140 | .0070 | .18 | 31.4 | 16.9 |
| 90X90 | .005 | .127 | .0061 | .16 | 30.1 | 15.8 |
| 100X100 | .0045 | .114 | .0055 | .14 | 30.3 | 14.2 |
| 100X100 | .004 | .102 | .0060 | .15 | 36.0 | 11.0 |
| 100X100 | .0035 | .089 | .0065 | .17 | 42.3 | 8.3 |
| 110X110 | .0040 | .1016 | .0051 | .1295 | 30.7 | 12.4 |
| 120X120 | .0037 | .0940 | .0064 | .1168 | 30.7 | 11.6 |
| 150X150 | .0026 | .0660 | .0041 | .1041 | 37.4 | 7.1 |
| 160X160 | .0025 | .0635 | .0038 | .0965 | 36.4 | 5.94 |
| 180X180 | .0023 | .0584 | .0033 | .0838 | 34.7 | 6.7 |
| 200X200 | .0021 | .0533 | .0029 | .0737 | 33.6 | 6.2 |
| 250X250 | .0016 | .0406 | .0024 | .0610 | 36.0 | 4.4 |
| 270X270 | .0016 | .0406 | .0021 | .0533 | 32.2 | 4.7 |
| 300X300 | .0051 | .0381 | .0018 | .0457 | 29.7 | 3.04 |
| 325X325 | .0014 | .0356 | .0017 | .0432 | 30.0 | 4.40 |
| 400X400 | .0010 | .0254 | .0015 | .370 | 36.0 | 3.3 |
| 500X500 | .0010 | .0254 | .0010 | .0254 | 25.0 | 3.8 |
| 635X635 | .0008 | .0203 | .0008 | .0203 | 25.0 | 2.63 |

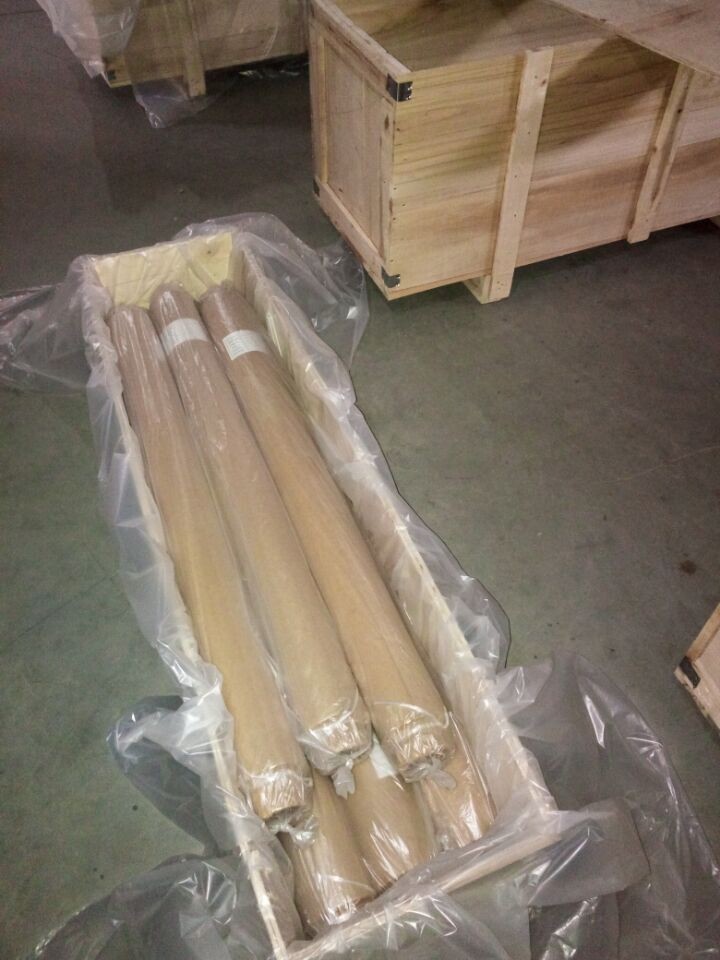

Stainless steel woven wire mesh packing
Our product range
In order to make an offer,please provide below specification of wire mesh
Material
Mesh size or aperture size
Wire diameter
Length per roll
Width per roll
About us
Anping Tenglu Metal Wire Mesh Co.,Ltd. is a professional wire mesh company.
We are located in Anping County, Hebei Province,China.

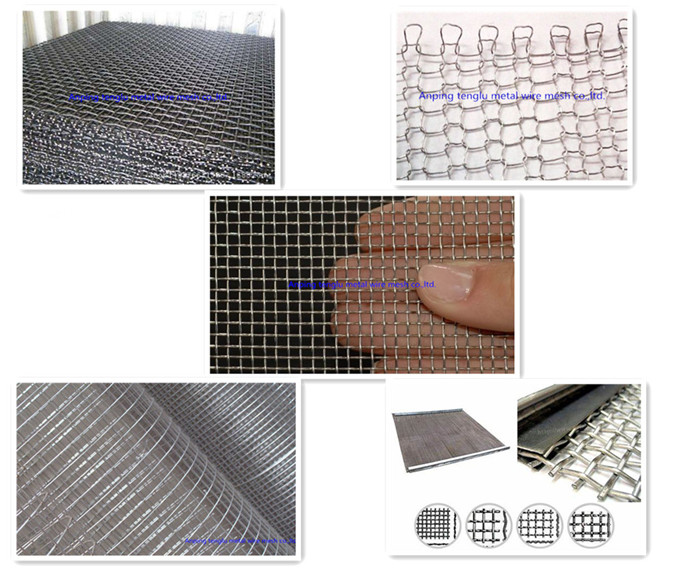

Our product range
- stainless steel woven wire mesh
- welded wire mesh
- crimped wire mesh
- hexagonal wire mesh
- brass wire mesh
- wire belt
- wire mesh filter

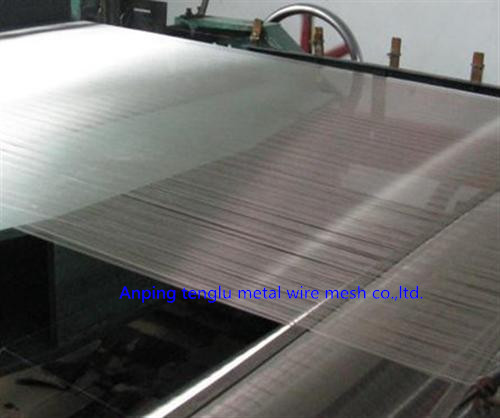

We have our own woven machines,our technique is based on rich experience of woven,from production to selling we have our professional personnel to compeleted,our woven mesh now cover plain weave,twill weave,dutch weave,plain dutch weave,twill dutch weave,we keep the flat surface of woven procudure and accurate filtration technique.All mesh is manufactured from highly pick up of stainless steel wire.
We welcome your enquiry!
